IIoT Live Box | Complete Remote Monitoring Panels and Packages
SCADACore’s turnkey packages provide clients with a one-stop solution to all their remote monitoring needs. IIoT Live Boxes provide interfaces with serial, ethernet, and usb devices, providing real-time control and monitoring to field devices and operations.
Monitoring for Tank Level, Water Level, Compressors, Generators, Motors, Pumps, VFDs, Solar Arrays, Temperature, Wind Direction, and More
Alarm Callout / Alarm Notifications via SMS, Email, and/or Voice Messages
- Real-time monitoring on 4-20ma, 1-5v, DIN, DOUT, and more
Modbus, CAN bus, ROCTalk, BACnet, HART 5, HART 7, and more
Interface with device with proprietary ASCII protocols
Tap into existing systems and gather data (without disturbing normal operations)
- Embedded 2G, 3G, LTE
Class 1 Div 2, -40˚ C to +85˚ C
SCADACore Live Box
SCADACore can work with existing communications wireless or wired to retrieve data. For applications where communications do not exist we can provide a turn-key and custom solution to meet your needs.
SCADACore Com Packages
SCADACore Com Packages provide all wireless equipment needed to set up your remote monitoring infrastructure. Modems are provided pre-commissioned and ready to install. No configuration is necessary.
High gain cellular antennas
Antenna cables and mounts
Modems and/or SCADACore Live PnP products
Installation and commissioning included

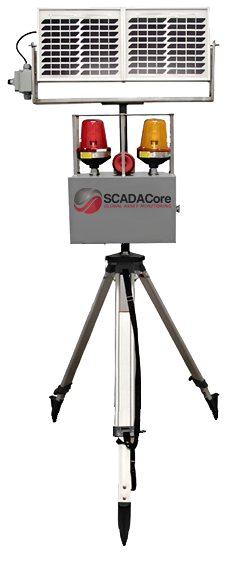

SCADACore Solar Com Packages
Solar Communication packages are a complete monitoring solution for remote sites, hardware includes:
- Weather Proof Class 1 Div 2 enclosure
- Solar regulator
- 100+ Amp Hour battery to ensure monitoring will last through the winter
- Solar panel
- Antenna, Lightning arrester, cables, mounts.
- Modem and/or SCADACore Live PnP products
- Installation and commissioning included
Sentinel Alarm Station
The local alarm station allows users to have a redundant alarming system. Local alarm thresholds can be set on the local touchscreen or remotely via SCADACore Live.
The alarm thresholds allow the users to trigger local sirens and beacons on the alarm station. At the same time any breaches of alarm levels will immediately trigger an increased poll rate push to SCADACore.
SCADACore Live has independent callouts set up for text and email allow additional “remote” users to alerted at the same time as local users.
